Mini Vibration Analysis

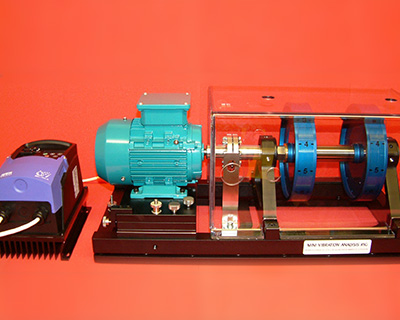

The Mini Vibration Analysis Rig has been designed to demonstrate the use of condition monitoring equipment. The rig can demonstratemisalignment,mechanical looseness as well as a variety of other issues.
  • Profiled & precision machined 6082 T6 high quality hard anodised aluminium
  • Keyed slot combined with drive screws for longitudinalmisalignment
  • Bracket mounted drive screw for lateral misalignment
  • Stainless steel dowels & clamp nuts to secure base plate when aligned correctly
  • 10 off accelerometer studs
  • Quality SKF 6202 Bearings with spares
  • Bespoke shaft, bearing caps & machined fixed coupling
  • Spring mounted base with rubber strips for isolation
  • Calibrated disks with gradient marked stickers, tapped holes for fitting weights
  • Complete with rig specific tools in a Peli 1660 case with organiser in lid to store tools & spares
  • Supplied with BETA tools and full spares package
  • Brook Compton 0.37kw 3ph 71 framemotor
  • Invertek Optidrive IP66 0.75kw 1ph-3ph 230v Inverter / variable speed drive with quick disconnect fitting
  • 3D routed foam inserts to ensure safe & secure storage & transport
  • PETG Guard with cut outs for instrumentation cables
  • Dimensions: Rig – 630l x 290w x 285h. Case – 800l x 581w x 482h
